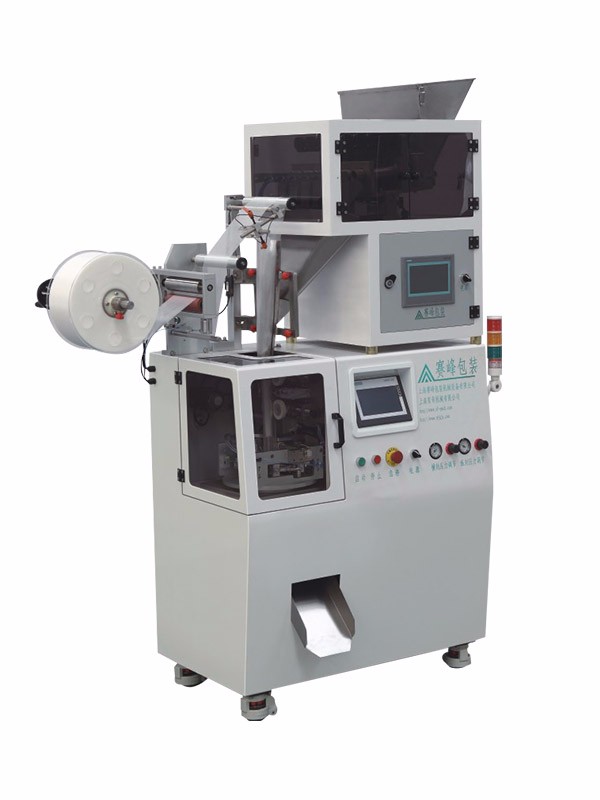

Triangular bag tea packaging machine — Load-cell weigher
Triangular bag tea packaging machine — Load-cell weigher
Applicable scope
Green tea,black tea,tea,Pu'er tea,formula tea,Babao tea,health tea,Chinese medicine Pieces,and so on.
Performance characteristics

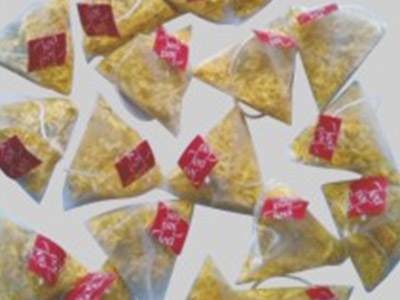

1.Through the ultrasonic sealing and cutting,to produce a beautiful bag and sealed three-dimensional three dimensional tea bag
2.Automatic quantitative measurement can easily change the illing process in the production process
3.Using Siemens PLC control,touch screen operation,more stable performance,the operation is more simple,more humane
4.SMC pneumatic components,Schneider electrical components,to extend the service life of the machine
5.The use of mechanical and electrical integration design,replacement data without stopping 1shut down
6.Packing capacity: SF-50SJ-4T 2100-3000 package / hour,SF-50SJ-6T 2700-3600 bag / hour
7.With a tape with a label material can be produced with a hanging tea bag

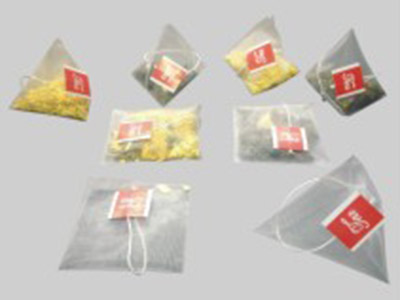

8.Triangular conical bag and four corners flat bag production process only one key switch
Main technical parameter
| Model | SF-5OT4 SF-50T6 |
| Measurement method | 四頭茶葉定量稱 六頭茶葉定量稱 |
| Packaging speed | 35- 50包/分 45- 60包/分 |
| Measurementrange | 1- 10克 |
| Measurement accuracy | ±0.15克 |
| The numberofunwinding | 1個 |
| Particle content | ≤2±0.5g/袋（其他規(guī)格可定制） |
| Bag paper requirements | 尼龍、無紡布、玉米纖維等超聲波封口材料 |
| Roll out diameter | ≤Φ400mm |
| Wrapthe corediameter of the roll | Φ76mm |
| Air pressure | ≥0.6Mpa(由定做方保證供氣) |
| Operator | 1人 |
| The motor power of the machine | 約2.8 Kw(220V) |
| Equipment shape | 約 L 1250xW 800xH 1850(mm) |
| Equipment weight | 約500kg |
