Applicable scope

Green tea, black tea, flower tea, pu 'er tea, formula tea, Babao tea, health tea,Chinese medicine Pieces,

Performance characteristics

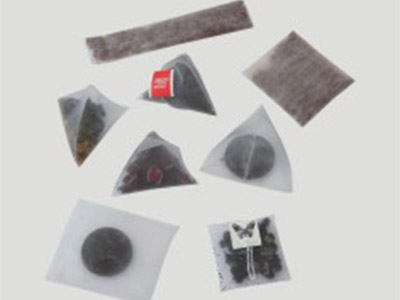

1.Through the ultrasonic sealing and cutting,to produce a beautiful bag and sealed three-dimensional three-dimensional tea bag

2.Automatic quantitative measurement can easily change the flling process in the production process

3.Using Siemens PLC control,touch screen operation,more stable performance,the operation is more simple,more humane

4.SMC pneumatic components,Schneider electrical components,to extend the service life of the machine

5.The use of mechanical and electrical integration design,replacement data without stopping / shut down

6.Packaging capacity: Triangle tea bag 2400-3600 bag / hour triangle bag inside and outside the bag 2100-3000 bag / hour

7.With a tape with a label material can be produced with a hanging tea bag

8.Triangular conical bag and four corners flat bag production process only one key switch

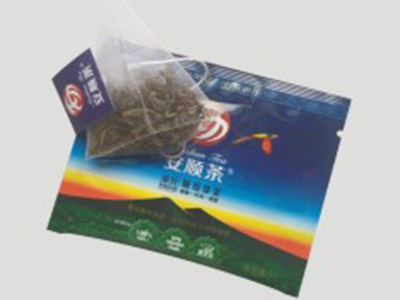

9.Horizontal machine using conveyor chain to connect the triangle tea charter,the triangle tea bag wrapped in the outer bag,a bagof a bubble of the independent packaging,split machine easy to check the triangular tea bag bad product

10.Outer bag with heat sealing composte fim,the sealing temperature using the module communication contol in the touch screenoperation,the pattern can be designed according to customer requirements,automatically with the standard

11.Can be installed nitrogen filling device nitrogen,to ensure that the product can be empty packet inspection

12.Install the empty packet detection and removal device to ensure the product qualification rate

13.Replace the bag width,no need to replace the bag making machine,eliminating the need to replace the bag time and cost

Main technical parameter
